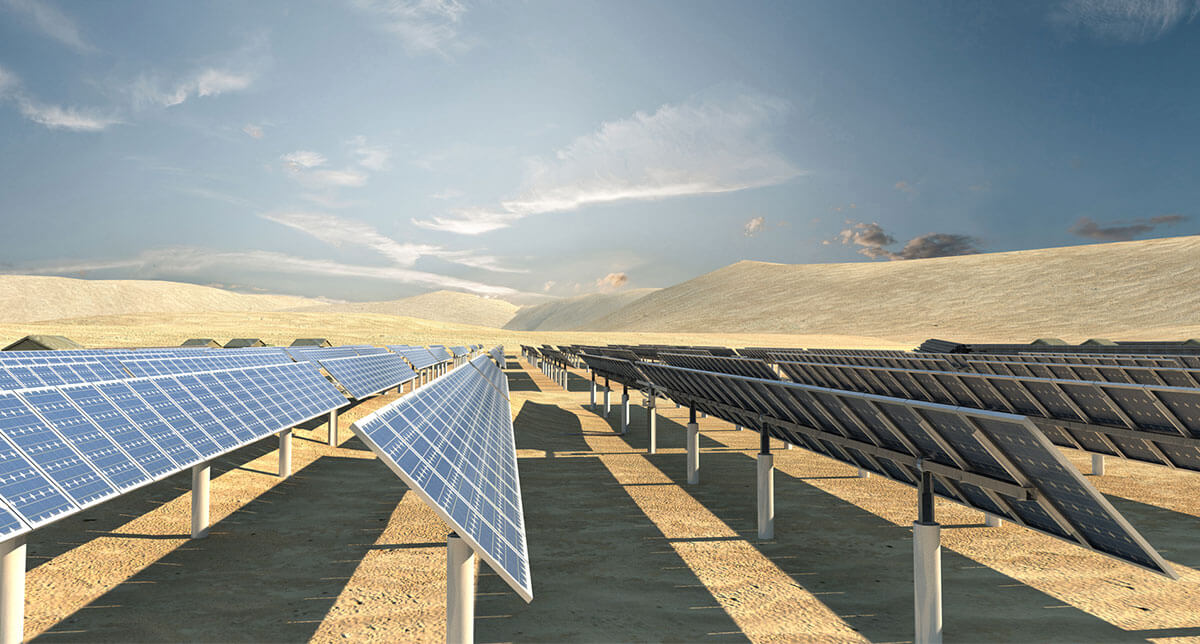

Mars Tracker (Single Row Independent Driving Tracker)
Clear passage between rowsThe operation and maintenance machinery and equipment can pass freely between rows;
Cost less on power station construction, no external power cable wiringRelying on string self-power supply, no external AC power supply is needed,reducing power station investment and shortening construction period;
Can be flexibly arranged ,without limit of terrainIt can be flexibly arranged in coal mining subsidence areas,coal gangue mountains,hills, mountains and other narrow and undulang terrain to improve land utilization;
Wireless communication device with higher reliabilityThe device comes with a wireless communication device, which reduces the investment cost of the power station and eliminates the need for on-site communication wiring construction and shortens the project construction period;
Overall high protection compatible with outdoor complex environmentThe protection level of the control system and core transmission components is not less than IP65, which meets the application of long-term outdoor environment;
Impeccable evasive and protect system under bad weatherIn the event of severe weather, the system can automatically detect and perform corresponding evasive actions to protect the safety of the mounting system and modules.
Applicable SceneLarge undulating terrain such as mountains and hills. Long and narrow, irregular terrain. Large ground power station.
Accurate astronomical algorithm active tracking and closed-loop feedback control operationThe controller uses astronomical algorithm active tracking and its closed-loop feedback control operation to ensure product reliability and operating accuracy, and ensure the stable income of the entire photovoltaic power plant;
Product type | Single row independent drive tracker |
|
|
Tracking range | ±60° |
Slope range | N-S:5°/ E-W:Unlimited |
Wind-resistant design | ≤38m/s |
Gale protection | ≤18m/s |
Main structural material | Q235B/Q355B/Q450 |
Zinc coating thickness | ≥65μm |
Pile foundation form | PHC pipe pile/driven pile/cast-in-place pile |
PHC pipe pile/driven pile/cast-in-place pile | ≥30% |
Module Type | 182/210mm |
Ground Clearance(Min) | 0.3m |
Layout of Module | 1V(≤90pcs)/2V(≤60pcs) |
Tracking mode |
Astronomical algorithm / active tracking / anti shadow tracking |
Tracking accuracy | ≤2° |
Control mode | Closed loop feedback control |
Control accuracy | ≤0.5° |
Power supply mode | Self-powered under AC or below 1500V DC |
Backup battery | Lithium battery,≥6Ah |
Controller | MCU |
Working environment temperature | -25℃~+60℃ |
Communication mode | Zigbee wireless communication |
Weather protection |
Gale/snow/hail |
Structure |
10 years |
Transmission and automation control |
5 years |
