Uranus Series tracker could automatically calculate the azimuth angle and elevating angle in accordance with local longitude, latitude and time.Then issue instructions to track the path of the sunlight timely,with stable operating and increasing 45% power generation.HuaDing solar dual axis tracking system will be your ideal choice for solar power plants.

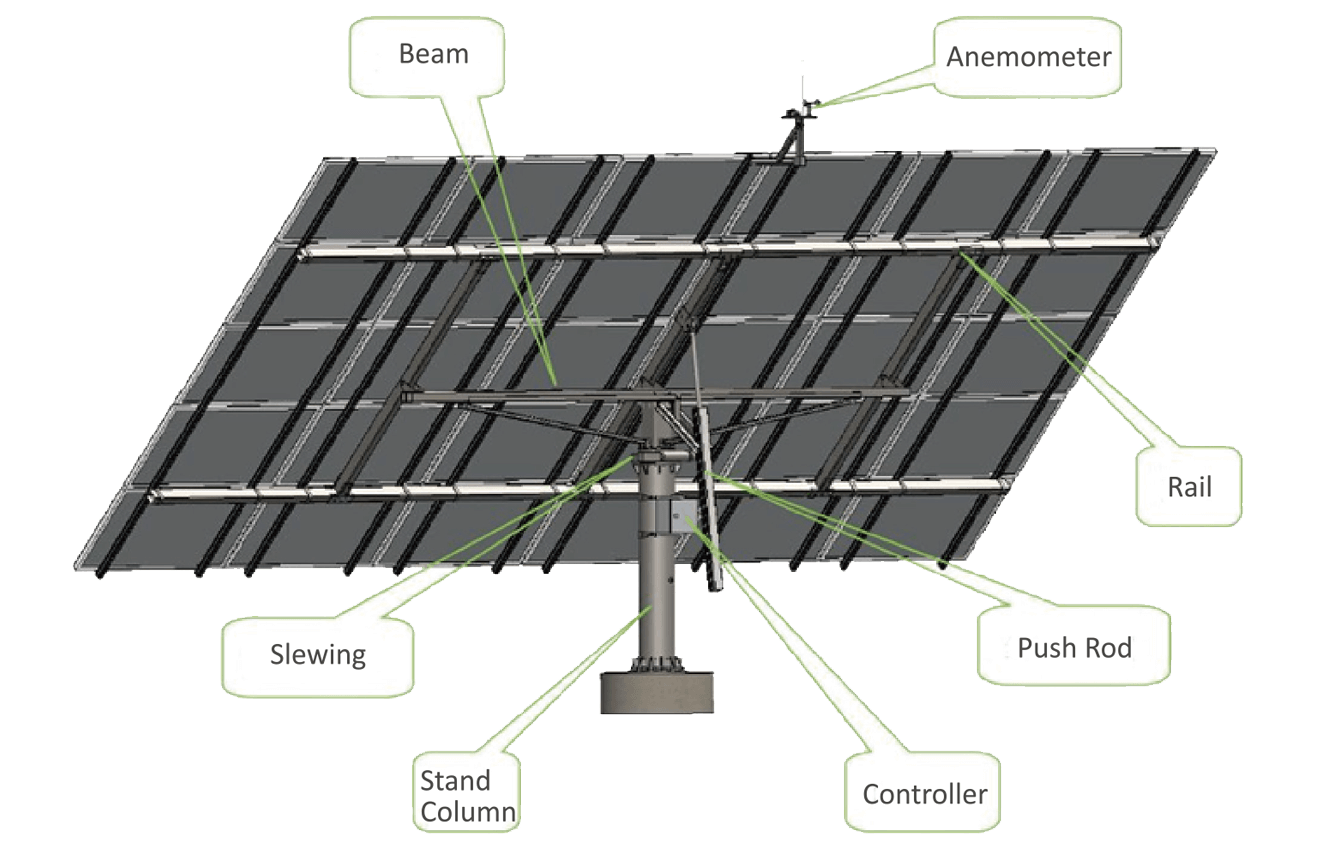

Product features Tracking principle Product identity Details on Structure Project cases

Advantage
Adapt to complex terrain for special pillar type installation;

Hot-dip galvanized steel and anodized aluminum material, good anticorrosion with long life span;

High precision of slewing driver with small gap, more stable.
Control system functions
Self-checking function and displaying present working condition;

Return to original position automatically at night;

Backward tracking function;

Meteorological monitoring function: automatically perform corresponding evasive action to protect from the harsh wind, rainfall and snowfalls;

With manual control mode, adjusting the angle of tracker can be artificial. Power-off protection and data memory function.

Power-off protection and data memory function.

Tracking Path

Basic parameters

Product Type	Single column double axis tracker	Transmission type	Rotary drive
Tracking range	Elevation angle:0-70°azimuth:±120°	Foundation Type	PHC/bored pile
Main structural material	Q235/Q355	Zinc coating thickness	≥65μm
Tracking mode	Astronomical algorithm/active tracking anti shadow tracking	Tracking accuracy	≤2°
Control mode	Closed loop feedback contro	Control accuracy	≤0.5°
Power supply mode	String self power supply	Daily power consumption of the system	≤0.5kWh
Controller	MCU	Working environment temperature	-40°C ~ +60°C
Communication mode	Zigbee wireless communication	Weather protection	Gale/snow
Structure	10 years	Transmission and automation control	5years

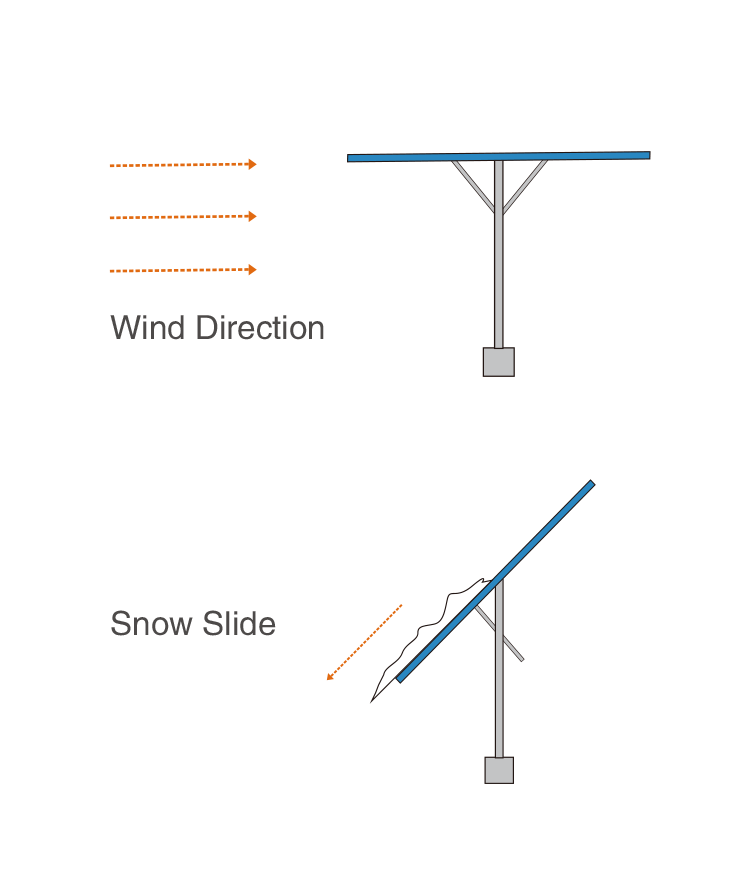

Solutions to Extreme weather

In strong wind condition:n the daytime, when the wind speed sensor detects the wind speed above18m/s (3S), the tracking system would temporarily gives up tracking the sun, but automatically turns to the safety angle, in order to keep the module in the maximum anti-wind angle state; When the wind speed is continuously detected to be lower than the programmed wind speed, the tracking will be resumed.
The night control system automatically backtracks to the maximum anti-wind angle and eliminates the operating errors of the day to ensure the accuracy of the whole tracking system.

In heavy snow condition:When the system detects that the snowfall is greater than the program set, the system will give up tracking the sun and turn to the maximum tilt angle to facilitate the snow to fall.When no snow is detected for a period of time, tracking will be resumed.
