H-type Steel Pile Foundation Carbon Steel Ground Mounting System

product
Return to product center
Fixed Mounting SystemH-type Steel Pile Foundation Carbon Steel Ground Mounting System


Product features Tracking principle Details on Structure Project cases

Environmental protectionNo damage to vegetation and ecological environment, no pollution.

High installation efficiencyEasy to install, complete piling within 3 minutes.

Wide application rangeThe pile foundation is suitable for various geological environments such as shallow beaches, deserts, grasslands, Gobi, and gravel strata etc.

High strength corrosion resistanceUsing high-quality hot-dip galvanized steel with galvanizing thickness of 60-80μm or more in order to effectively prevent rusting.

Good mechanical propertiesThe structure design is subject to professional and strict mechanical calculation to ensure that it can meet the mechanical and architectural specifications under different conditions and ensure safety and stability.

Working principle


Installation site Open Ground (Complex Terrain)
Foundation H-shaped steel pile
Installation angle On requirement
Installation height On requirement
Module arrangement Portrait or landscape
Module specification Frame/Frameless
crystalline/ thin film
Module size On requirement
Principal Material Hot dip galvanizing steel
Wind load On requirement
Snow load On requirement
Warranty time 10 years
International standard ISO9001、CE

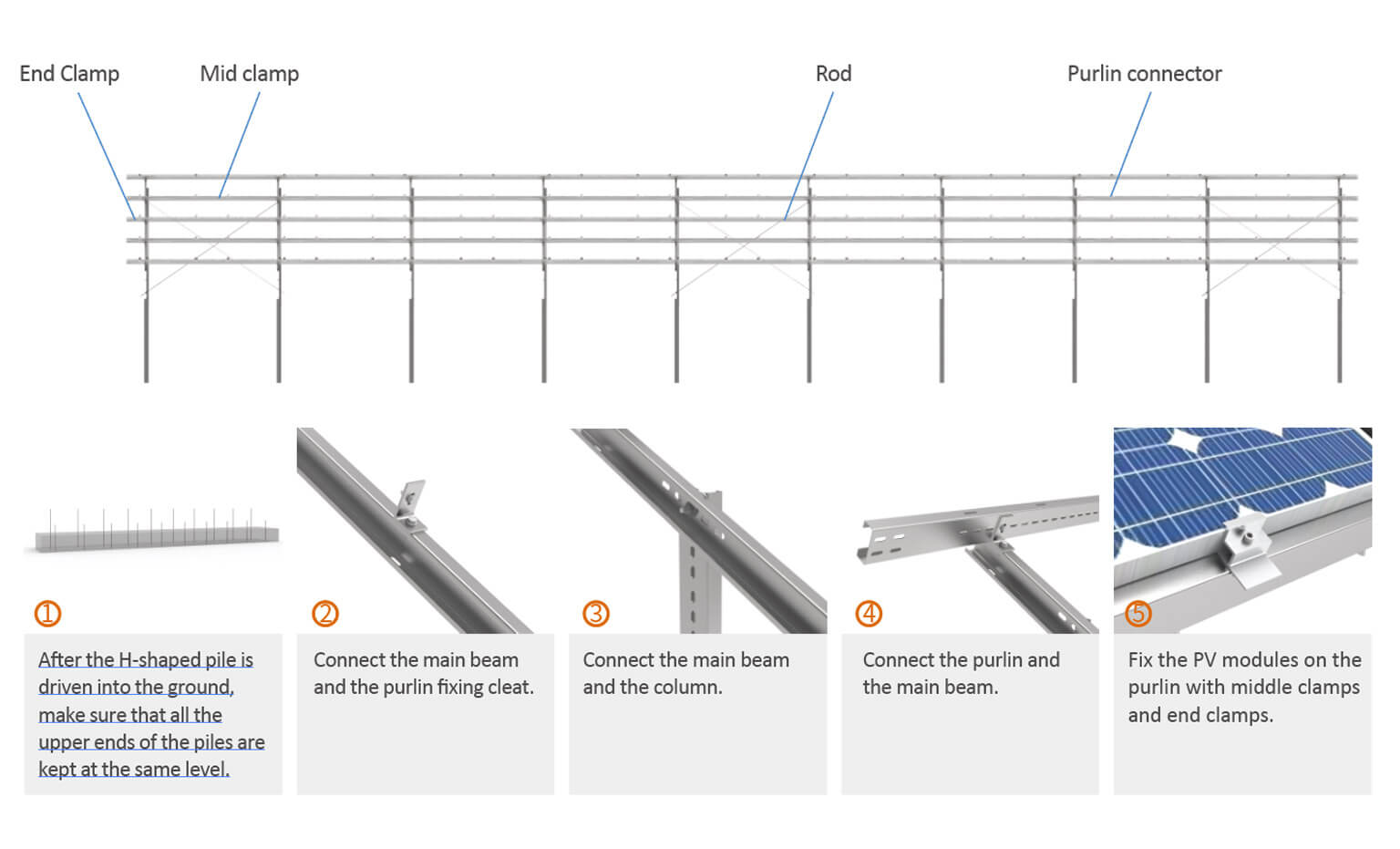

Details on Structure

Project cases
