Ground mounting system-screw pile

product
Return to product center
Fixed Mounting SystemGround mounting system-screw pile


Product features Tracking principle Details on Structure Project cases
  • Advantage

    Eco-friendiy and non-pollution;

    Adaptable for all kinds of soil conditions;

    60-80um hot-dip galvanizing steel surface ensures high corrosion resistance;

    High installation efficiency^pile driving finished in max. 3 minutes;

    Excellent mechanical property.

Working principle


Installation site Open Ground (Complex Terrain)
Foundation Ground screw
Installation angle On requirement
Installation height On requirement
Module arrangement Portrait or landscape
Module specification Frame/Frameless
crystalline/ thin film
Module size On requirement
Principal Material Hot dip galvanizing steel
Wind load On requirement
Snow load On requirement
Warranty time 10 years
International standard ISO9001、CE

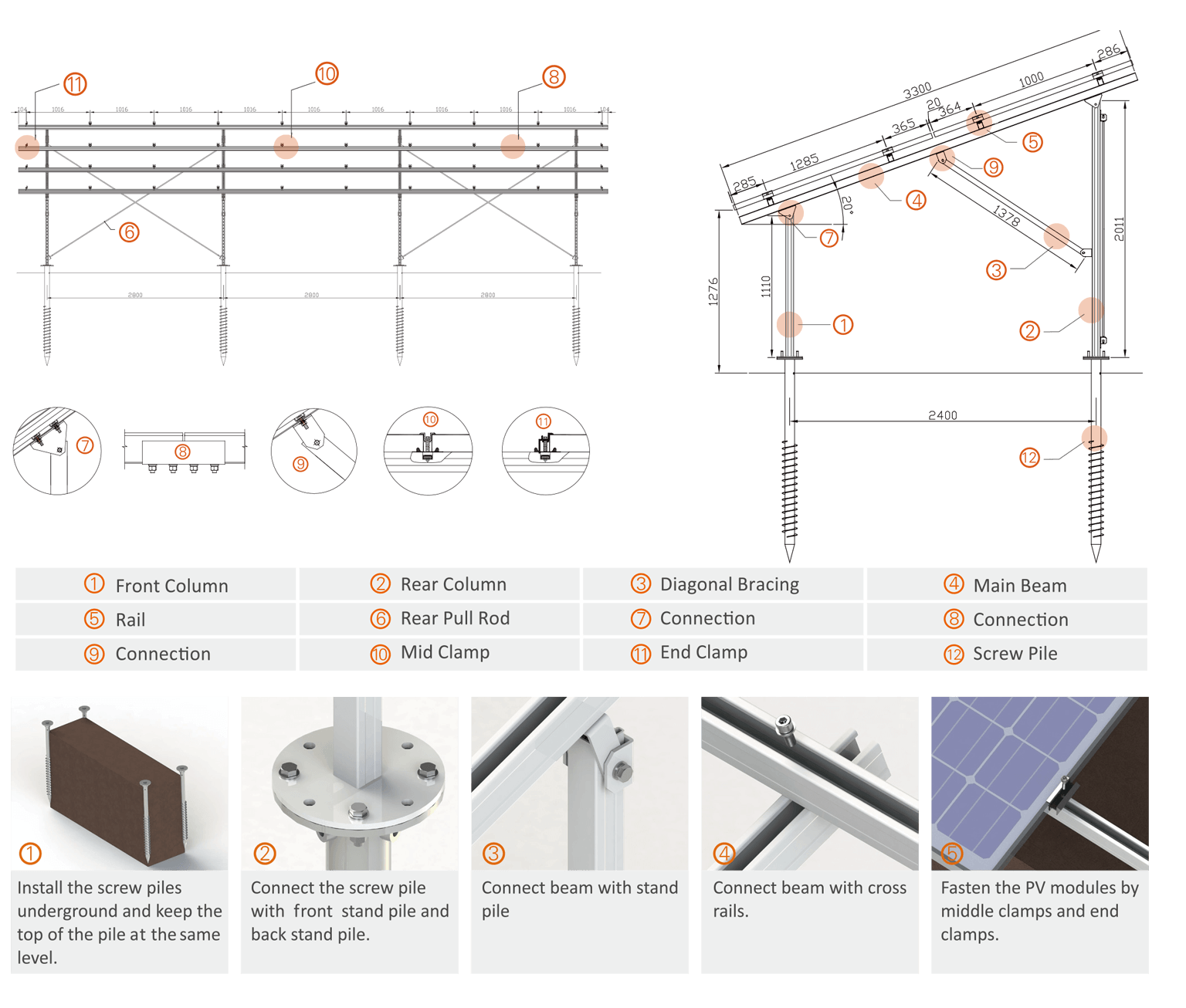

Details on Structure

Project cases
