Rooftop Mounting SystemMetal roof support system

This system is widely used in flat roof and tilt roof and can be large-scale installed. With special aluminum rails, ‘z’ clamp and rail connection technology, there is no need for on-site processing which make the installation of panels faster and more convenient.

Product features Tracking principle Details on Structure

Advantage
Apply in parallel roof solution and tilt angle roof solution

Quick installation, structural stability and easy assembly

Anodized aluminum rails, stainless steel components for long life span

Optimizing solutions available according to actual comdition of the roof

Installation site	Metal roof
Tilt Angle	As required
Building Height	≤20m
Module Arrangement	Landscape or portrait
Module Specification	Frame/frameless Crystalline/thin film
Module Size	As required
Principal Material	Anodized AI6005-T5& SUS 304Wind load
Wind load	As required
Snow Load	As required
Guarantee/Life Span	25 year
International Standard	ISO9001、CE

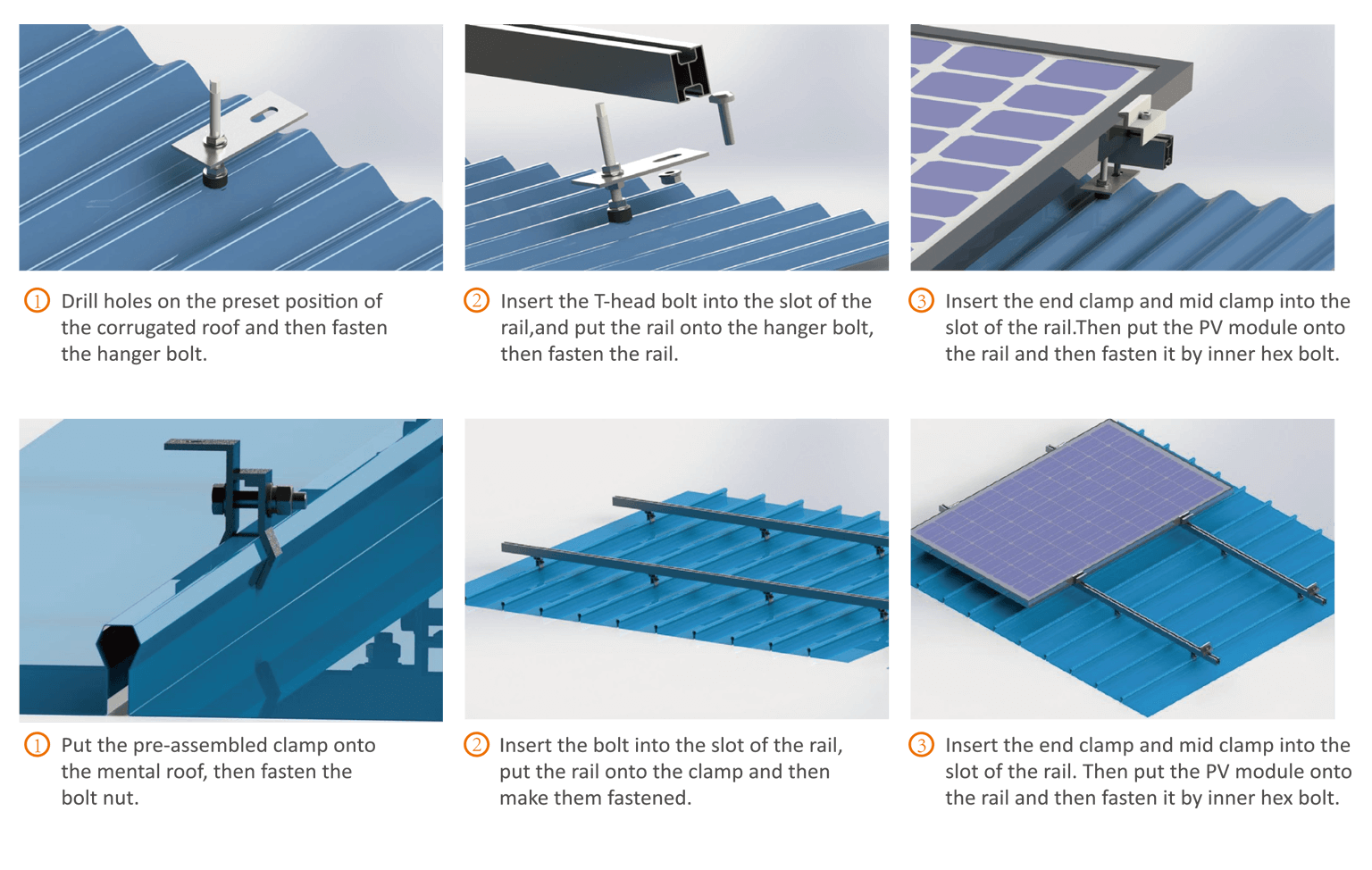

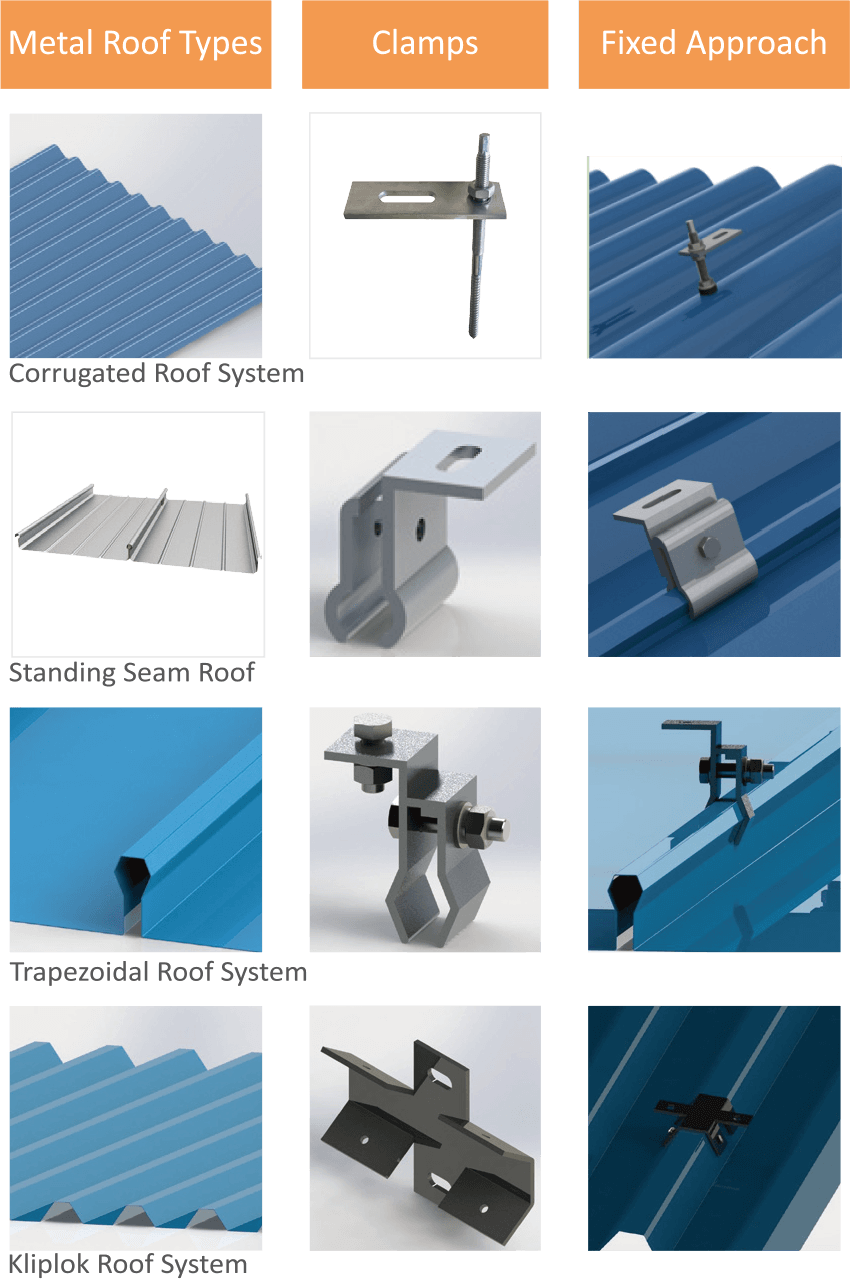

Details on Structure




