Rooftop Mounting SystemTile-on roof mounting syste


Product features Tracking principle Details on Structure
  • Advantage

    Widely used for various tiles (S-Type tile, Scales tile, slating, etc.) for both crystalline and thin film modules;

    Special connection design makes installation easier and faster. All components are made from anodized aluminum & stainless steel to ensure high durability.

Working principle


Installation site Tile roof
Slop of roof <30°
Wind load On requirement
Module arrangement Portrait or landscape
Module specification Frame/ frameless
crystalline/ thin film
Module size On requirement
Principal Material Anodized aluminum
Components material Anodized aluminum/Stainless steel
Snow loa On requirement
International standard ISO9001、CE

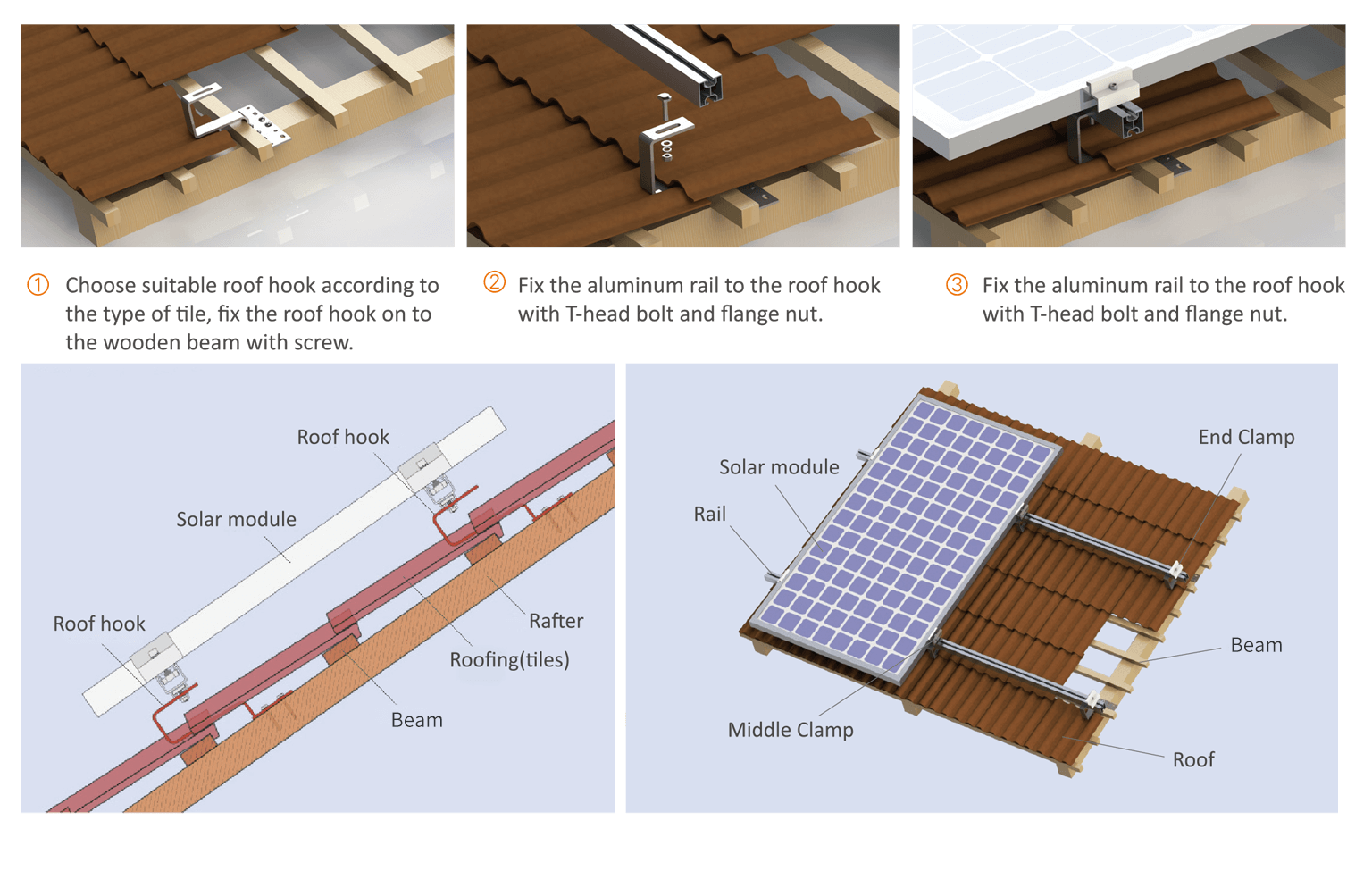

Details on Structure
