Ground aluminum mounting system
Rapid installation, few components, high commonalityThe Huading Solar Inclined Single-Axis Tracking System adopts a unique linkage structure and maintenance-free slewing bearing, which makes it have reliable system stability, low failure rate and low maintenance cost. Compared with the traditional fixed bracket, it can increase the power generation by 20% -40%.

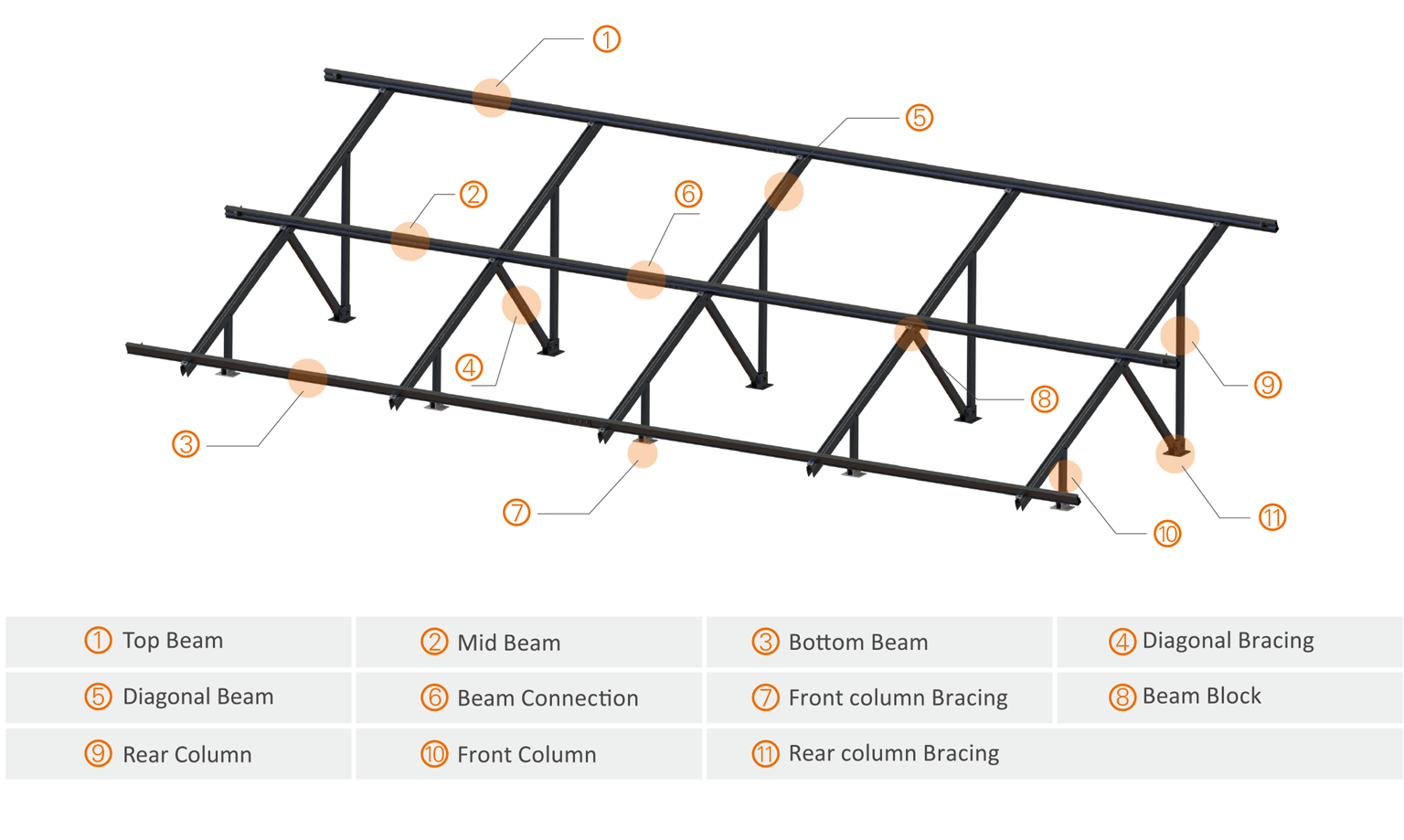

Reduction of construction errorUsing non block beams can save block position; Connecting beam and diagonal beam with slide nuts would helps reducing installation errors.

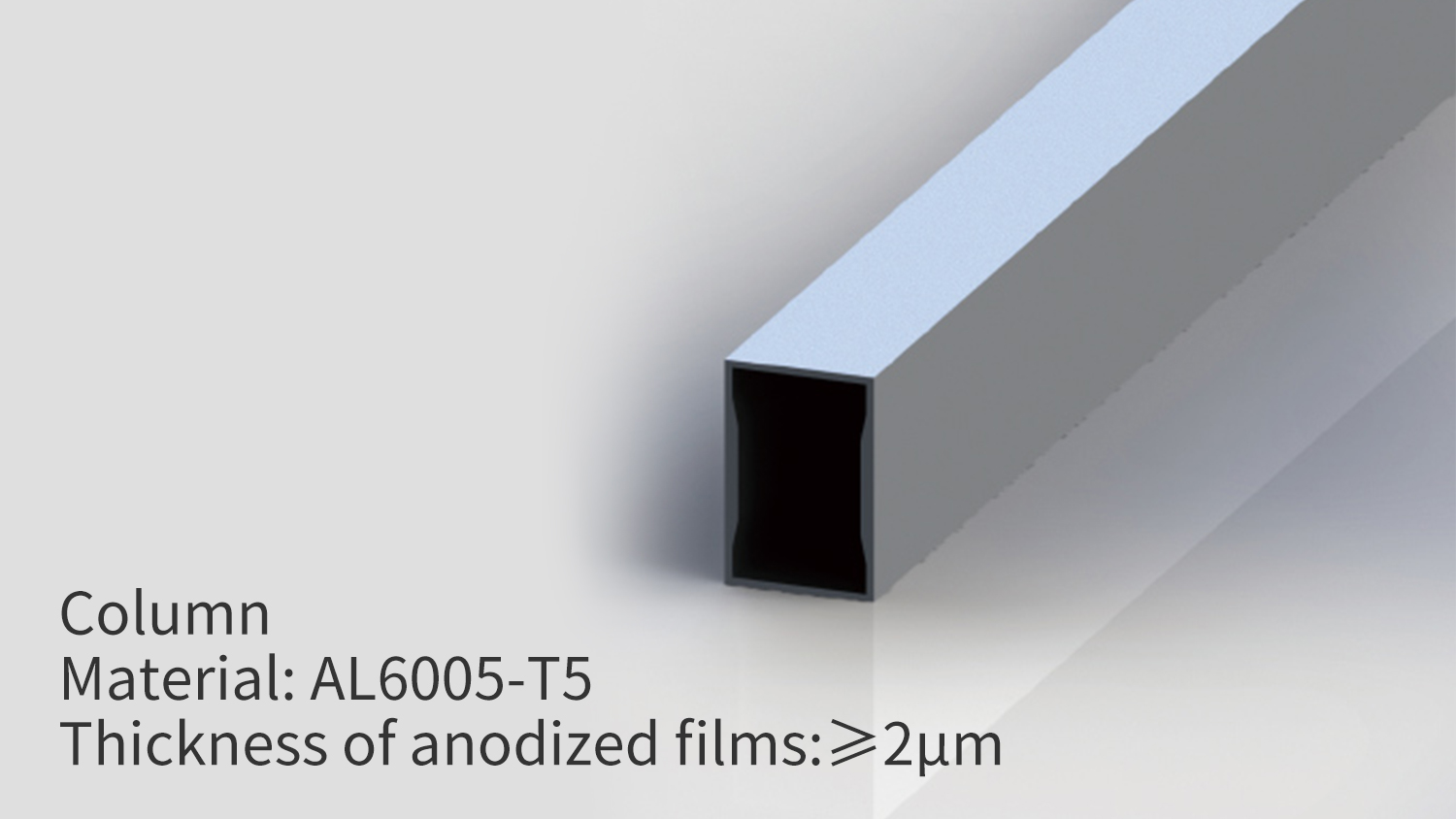

High-strength and good erosion-resistanceThe main structure is in anodized 6005-T5 ,and its fasteners are in anodized SUS304, with neat appearance and good erosion-resistance.
Wide rangeThe special character of aluminum alloy and stainless steel determines the product can be applied to various fields.
Installation site | Open Ground |
Installation angle | On requirement |
On requirement | Portrait or landscape |
Module specification | Frame/ frameless Crystalline/thin film |
Module size | On requirement |
Principal Material | Anodized aluminum |
Installation height | On requirement |
Wind load | 60m/s |
Snow load | On requirement |
Warranty time | On requirement |
Warranty time | ISO9001、CE |
