HuaDing tilt single axis tracker is a cost effective product designed for large-scale PV ground mount systems. The unique linkage structure and mainten ance-free rotary bearing provides excel lent reliability low failure rate and low maintenance cost. This system enables to increase power.

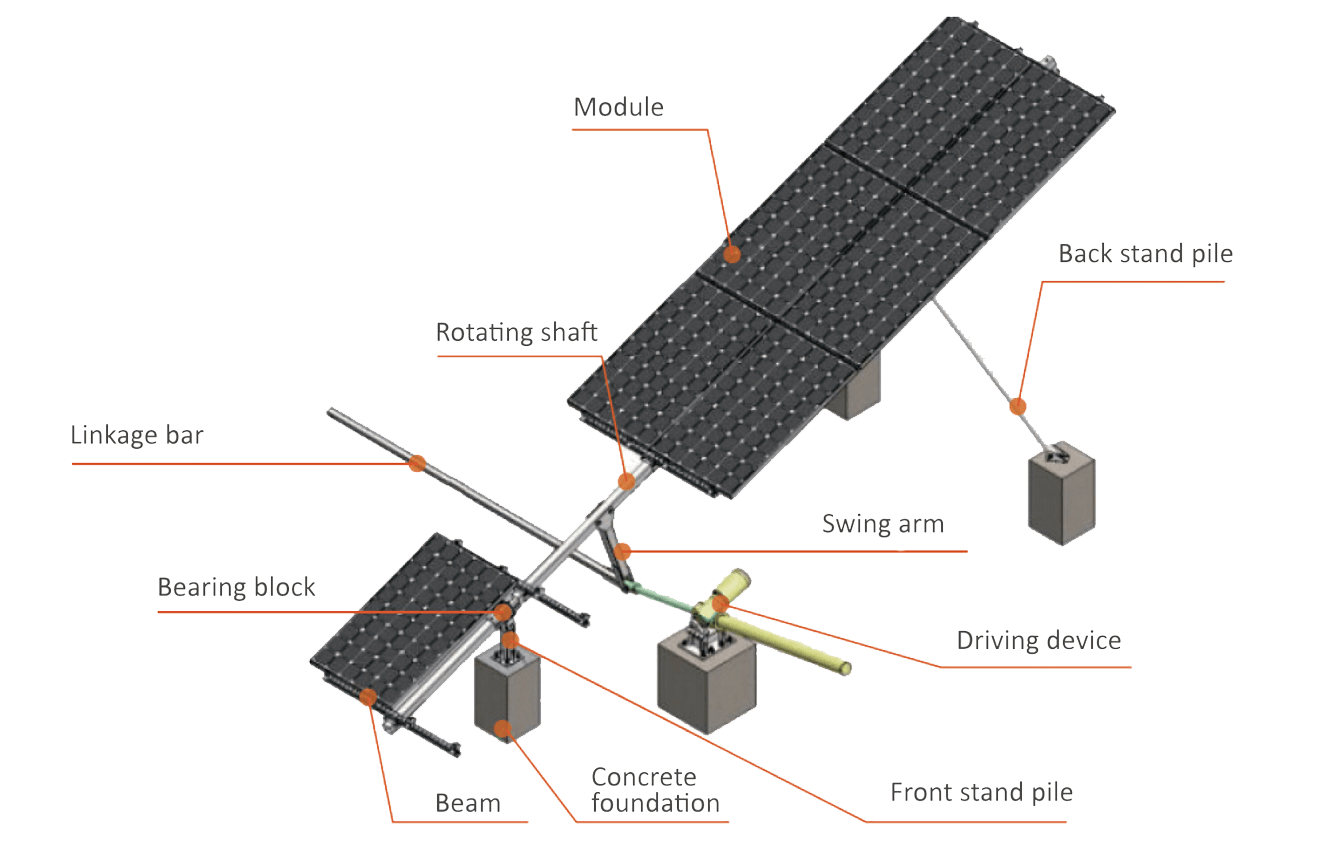

Product features Tracking principle Details on Structure Project cases

Advantage
Pre-assembly design, reduce site installation time

Adaptable to large scale solar power plant in middle and high latitude regions

Hot-dip galvanized steel and stainless steel materials, high anticorro- sion and long life span

Maintenance-free design, using polymer bearing can effectively prevent the erosion caused by sand, dust, rain and snow. Automatic recognition of protection for all kinds of weatherf rain, snow, high wind, etc).
Control system functions
Self-checking function and displaying present working condition

Automatically return to horizontal position at night

Obtaining mounting angle in real time; automatically tracking sunlight and maximizing power capacit

Meteorological monitoring function: automatically perform corresponding evasive action under the condition of rainfalls、 snowfalls and low-light; mounting system protection and maximum of power generation

With manual control mode, adjusting the angle of tracker can be artificial

Power-off protection and data memory function

Tracking principle

According to the longitude, latitude, sea level and time of the project site, the program automatically calculates the orbit of the sun, the azimuth and height angle of the location at any time.
According to the tracking range, the system automatically issues instructions to control the operation of the electric actuator, and adjusts the tracking Angle every once in a while, so that the module is always aligned with the position of the current sun, the panel is aligned with the sun, and the tracking system is fixed the rest of the time.

Control method	Time control
Tracking accuracy	±1°
Motor power source	AC:380V/DC:24V
Motor power	90W
Tracking range	±45°
Tilt angle	≤30
Wind loading rating	According to customer requirements
Working wind speed	According to customer requirements
Operating Temperature	-25℃~65℃
Guarantee/life span	10yrs/25yrs
Material of Structure	Hot-dip Zinc steel
International standards	Q2358
